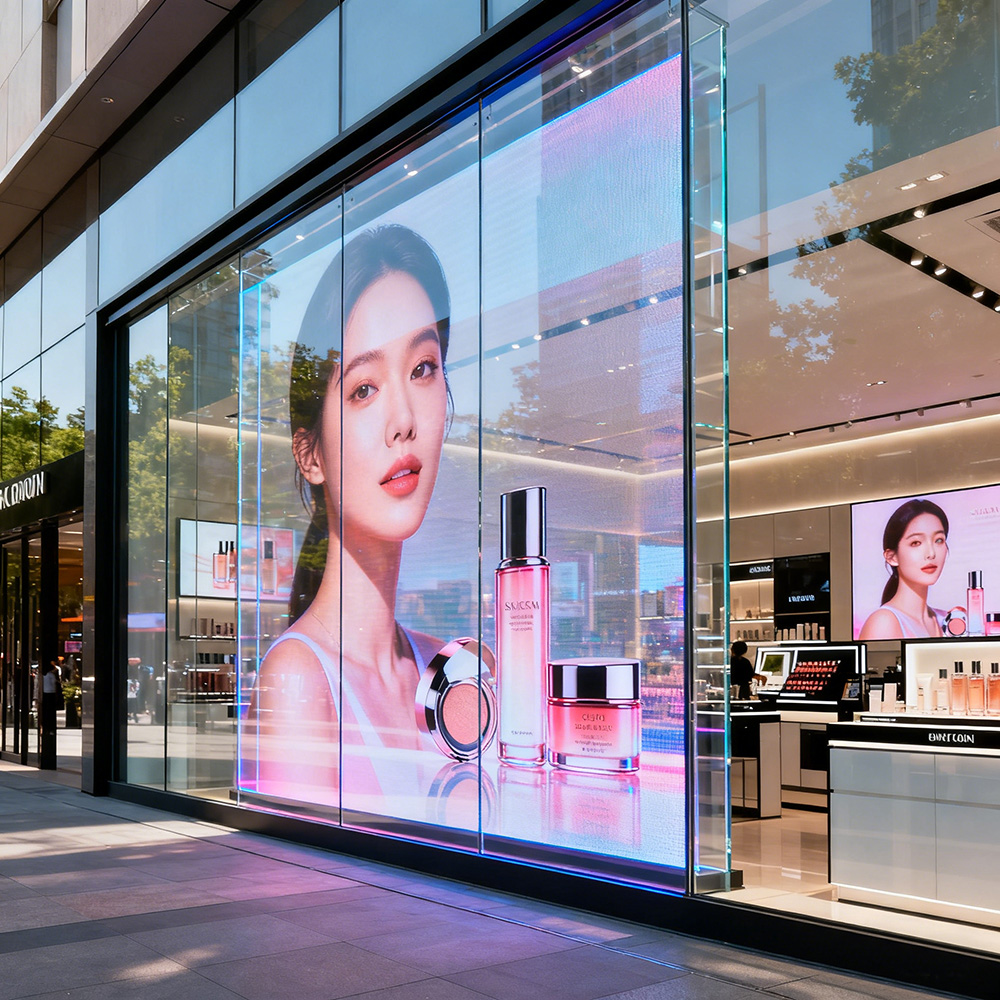

Commercial Advertising Transparent Led Film Display for Glass Window Wall

Commercial Advertising Transparent Led Film Display for Glass Window Wall

Product Specification： P4.0
Pixel Pitch： 4mm*4mm
Pixel： 62500 Points/m2
LED Specification： SMD1313
Pixel Composition： 1R1G1B
Module Size： 1000mm*240mm
Module Resolution： 250*60
Pixel Resolution： 250*250/㎡

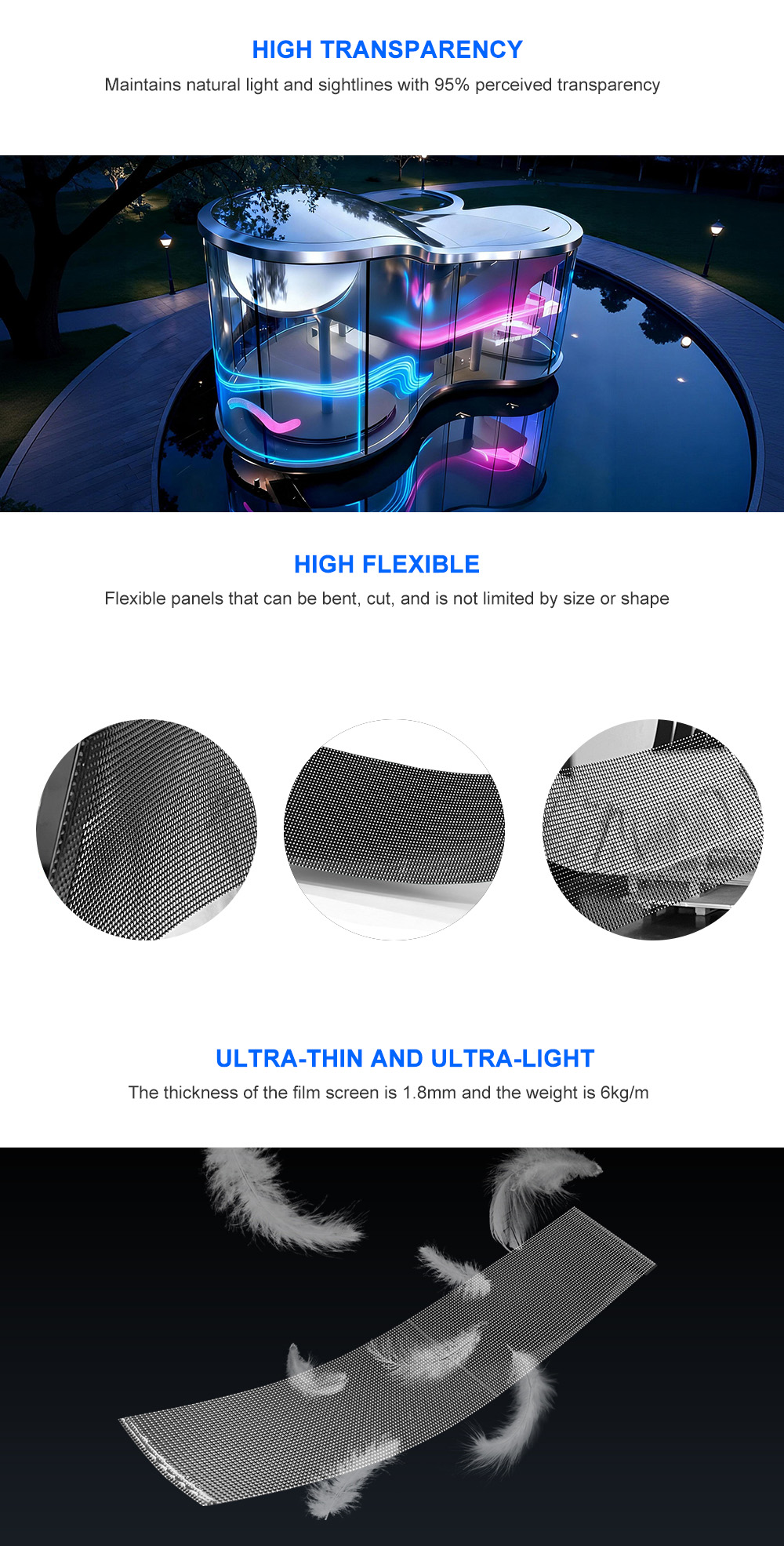

Transmittance： ≥85%
Box Wiring Mode： Internal Wiring
INQUIRY

Top 5 Selling Points

High-Definition Display – 4mm×4mm pixel pitch with 62500 points/m², 16Bit grayscale for rich details and natural color transitions.
Flexible Brightness Control – 1000-1500cd/m² white balance brightness with 0-255 levels, adapting to various ambient light.
Versatile Control Modes – Supports synchronous (computer control) and asynchronous (WiFi APP/USB drive) operation for easy content updates.
Slim & Durable Design – ≤7KG/m² lightweight, internal wiring for clean back, 100,000 hours theoretical service life.
Wide Compatibility – 3200K-8500K adjustable color temperature, multiple input signals, and optional wide voltage power supply.

Technical Specifications

Product Model	P4/P5/P6/P8/P10/P20/P40
Pixel Pitch	4mm×4mm - 40mmx40mm
Pixel Density	625 - 62500 points/m²
LED Specification	SMD (integrated light and driver)
Pixel Composition	1R1G1B
Module Size	1000mm×240mm
Permeability	≥85%
Weight	≤7KG/m²
White Balance Brightness	1000-1500cd/m²
Peak Power Consumption	800W/m²
Average Power Consumption	About 280W/m² (depending on video source)

Product FAQ

Q1: Which devices can control the screen?

A1: It can be controlled via computer with a synchronous box, or via WiFi-connected mobile APP/USB flash drive with an asynchronous box for offline operation.

Q2: Can brightness be adjusted automatically?

A2: It supports 0-255 levels of manual brightness adjustment. You can set appropriate brightness according to ambient light to meet display needs in different scenarios.

Q3: Is it suitable for outdoor installation?

A3: This product has an IP30 protection rating, mainly suitable for indoor scenarios. For outdoor use, we recommend customized models with higher protection levels. Please contact us for details.

Q4: How to update display content?

A4: For synchronous control, update directly via computer. For asynchronous control, upload via mobile APP or copy with USB flash drive – the device will automatically sync and play new content.
